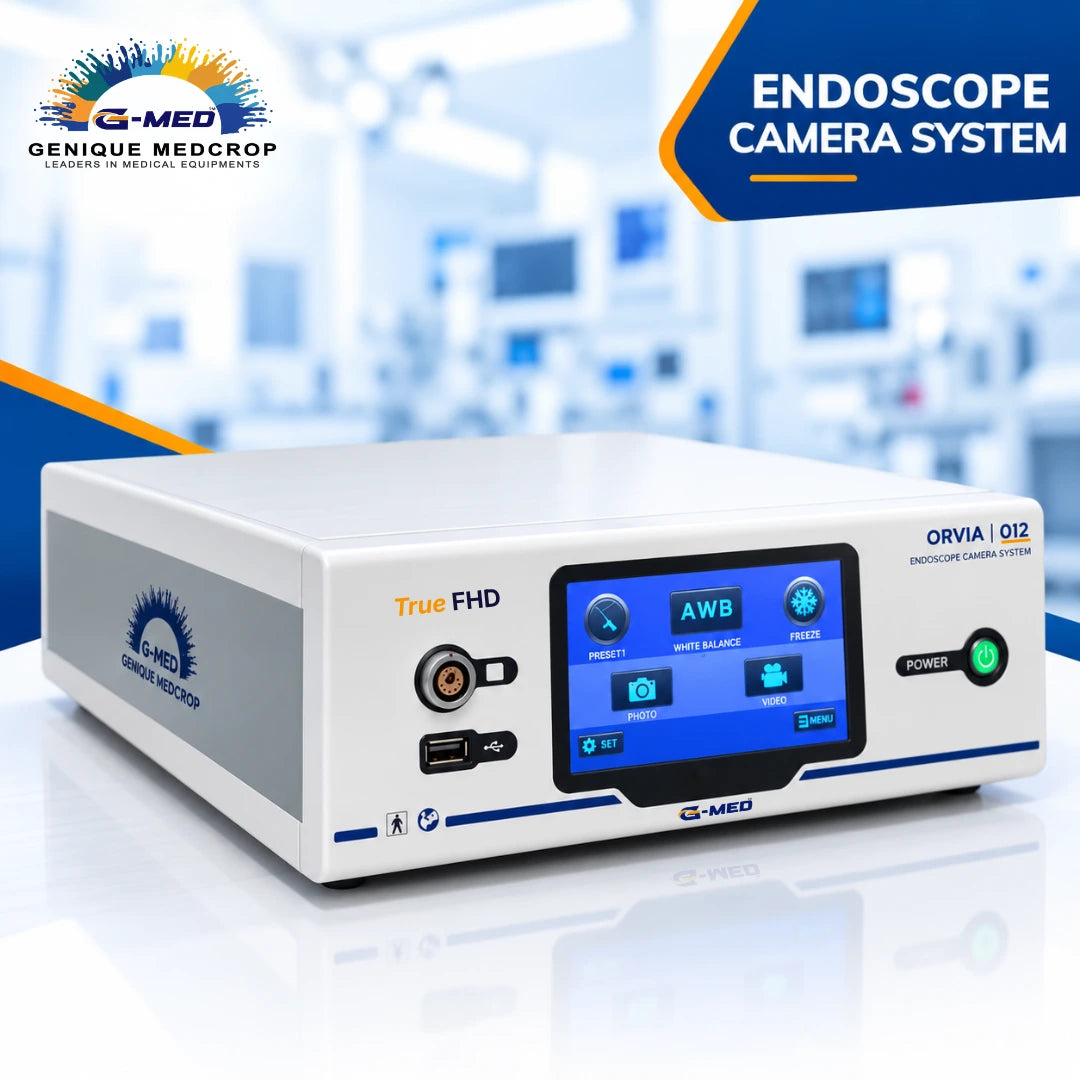

G-MED ORVIA 012 Full HD Endoscopy Camera System
G-MED ORVIA 012 Full HD Endoscopy Camera System
Couldn't load pickup availability
The G-MED ORVIA | 012 Full HD Endoscopy Camera System is designed to deliver Full HD imaging for compatible endoscopic applications. It supports 1920 × 1080 resolution at 60fps, a 5-inch LCD touchscreen, multiple video output options and USB image and video capture.
With preset modes for ENT, laparoscopy and cystoscopy, along with white balance, freeze, photo and video functions, ORVIA | 012 provides a practical camera system for medical professionals.
Contact GMED to enquire about product availability, configuration and quotation.
Key Features
Full HD Imaging
Supports 1920 × 1080 resolution at 60fps for Full HD image capture and display.

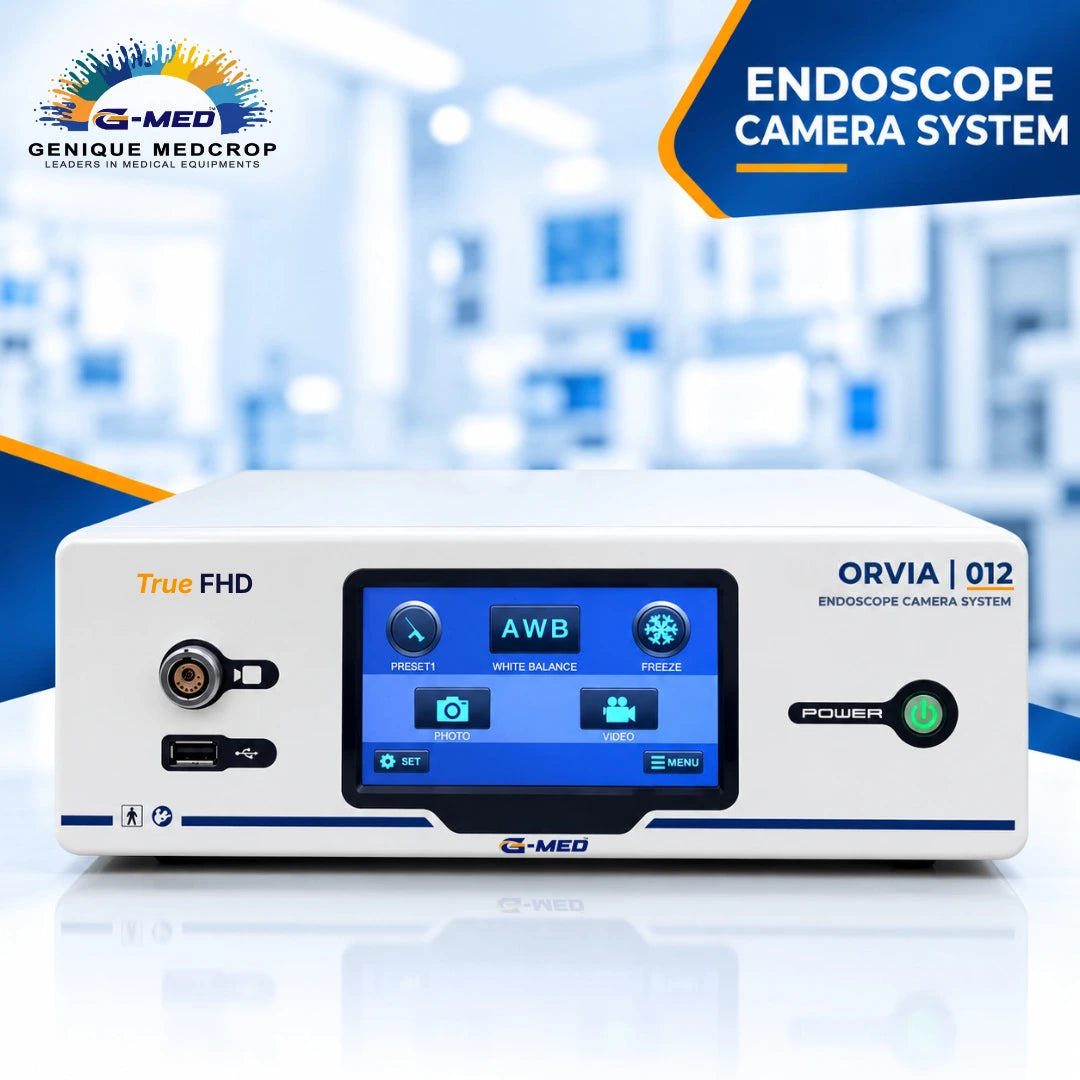

5-Inch LCD Touchscreen
Features a 5-inch LCD touchscreen with an on-screen menu for system operation and settings.

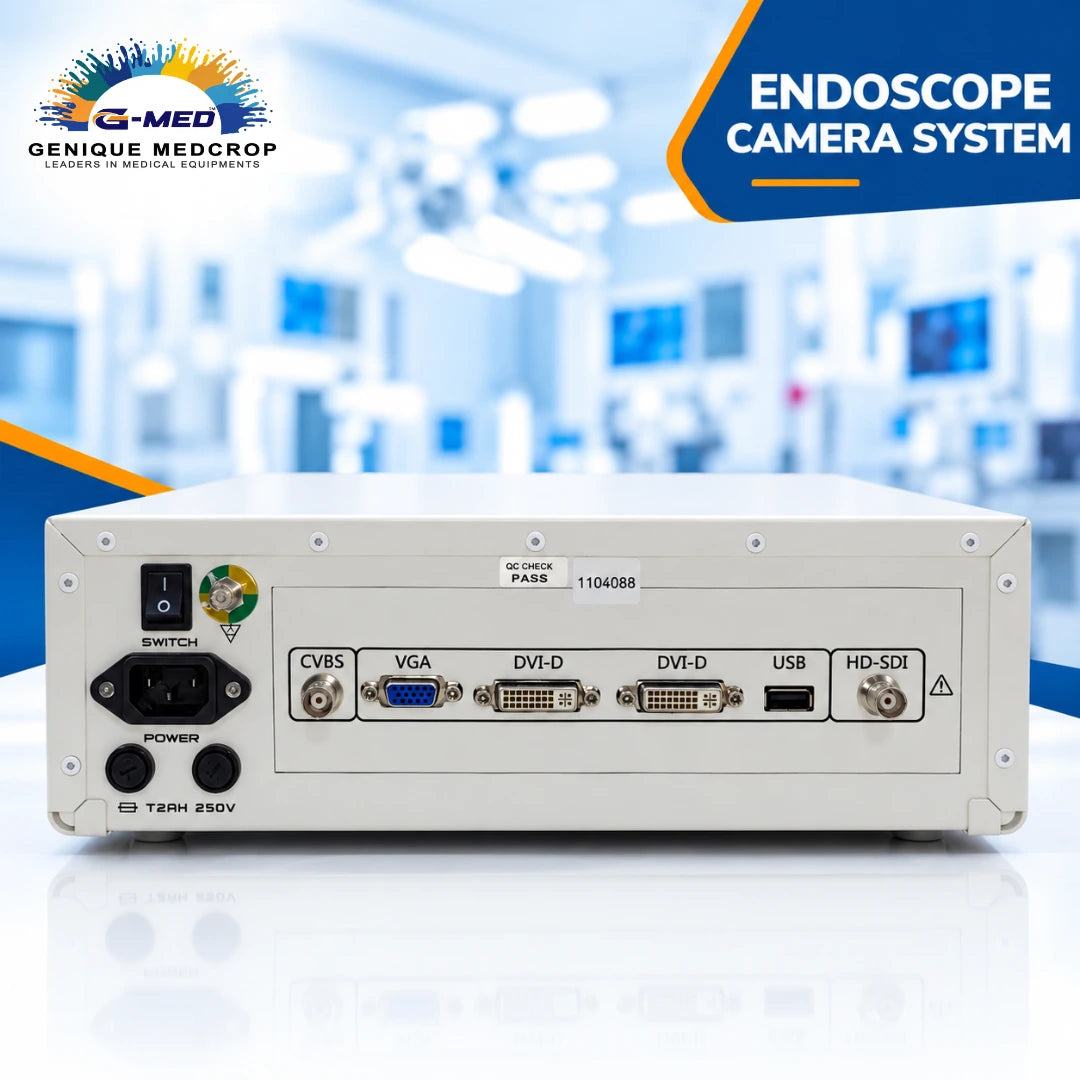

Multiple Video Outputs
Supports HDMI, DVI-D, 3G-SDI, VGA and CVBS video output connections.
USB Image and Video Capture
Supports saving captured images and videos to a USB flash drive.
Camera Head Controls
The camera head features programmable buttons for supported functions.
Image Adjustment Functions
Includes white balance, freeze, photo and video functions.
Application Presets
Includes preset modes for ENT, laparoscopy and cystoscopy, with support for saving personal settings.
Applications
The G-MED ORVIA | 012 supports preset modes for:
-
ENT
-
Laparoscopy
- Cystoscopy
Technical Specifications
|
Specification |
Details |
|---|---|
|
Product name |
G-MED ORVIA | 012 |
|
Product type |
Full HD Endoscopy Camera System |
|
Image resolution |
1920 × 1080 |
|
Frame rate |
60fps |
|
Display |
5-inch LCD touchscreen |
|
Video outputs |
HDMI, DVI-D, 3G-SDI, VGA, CVBS |
|
Image capture |
Supported |
|
Video capture |
Supported |
|
USB storage |
Image and video storage via USB flash drive |
|
Camera head |
Programmable buttons |
|
White balance |
Supported |
|
Freeze function |
Supported |
|
Photo function |
Supported |
|
Video function |
Supported |
|
Preset modes |
ENT, laparoscopy, cystoscopy |
|
Personal settings |
Supported |
|
Operating interface |
Touchscreen and on-screen display menu |
FAQ
What is the G-MED ORVIA | 012?
G-MED ORVIA | 012 is a Full HD endoscopy camera system supporting 1920 × 1080 imaging at 60fps.
What is the resolution of ORVIA | 012?
It supports a resolution of 1920 × 1080 at 60fps.
Does the system have a touchscreen?
Yes. It features a 5-inch LCD touchscreen.
Which video outputs are available?
The system supports HDMI, DVI-D, 3G-SDI, VGA and CVBS.
Can images and videos be saved?
Yes. The system supports capturing and saving images and videos using a USB flash drive.
Which application presets are available?
The documented preset modes are ENT, laparoscopy and cystoscopy.
How can I request a quotation?
Use the GET QUOTE button on the product page to contact GMED about pricing and product availability.
Looking for a Full HD Endoscopy Camera System?
Explore the G-MED ORVIA | 012 and contact GMED for product information, configuration details and a quotation.
